Rivi Thermosetting - Rubber (M-Tecs R / H-Tecs R) Magnetic Mold Clamping Systems
Safe, Fast, and High-Temperature-Resistant Magnetic Technology for Thermoset and Rubber Presses
Developed by Rivi Magnetics, the M-Tecs R and H-Tecs R systems are high-temperature-resistant magnetic mold clamping and heating solutions specifically designed for thermosetting plastics and rubber applications. These systems represent a patented technology developed for use in injection, compression, and transfer presses, suitable for both vertical and horizontal press configurations.
In thermoset and rubber processing, high operating temperatures, long curing times, and heavy molds make mold changeover operations time-consuming and potentially hazardous for operators. The M-Tecs R system eliminates these challenges by completely replacing mechanical clamping devices, ensuring safe and uniform mold clamping through magnetic force.
The H-Tecs R range complements the magnetic clamping system with fully compatible integrated or standalone heated platen solutions, significantly improving process stability in rubber and thermosetting applications.
Operating Principle and System Design
The M-Tecs R magnetic mold clamping system generates a full-surface magnetic field between the mold and the press platen. This allows the clamping force to be distributed evenly across the entire mold surface rather than being concentrated at specific points. Such homogeneous force distribution significantly reduces internal stress, deformation, and mold deflection.

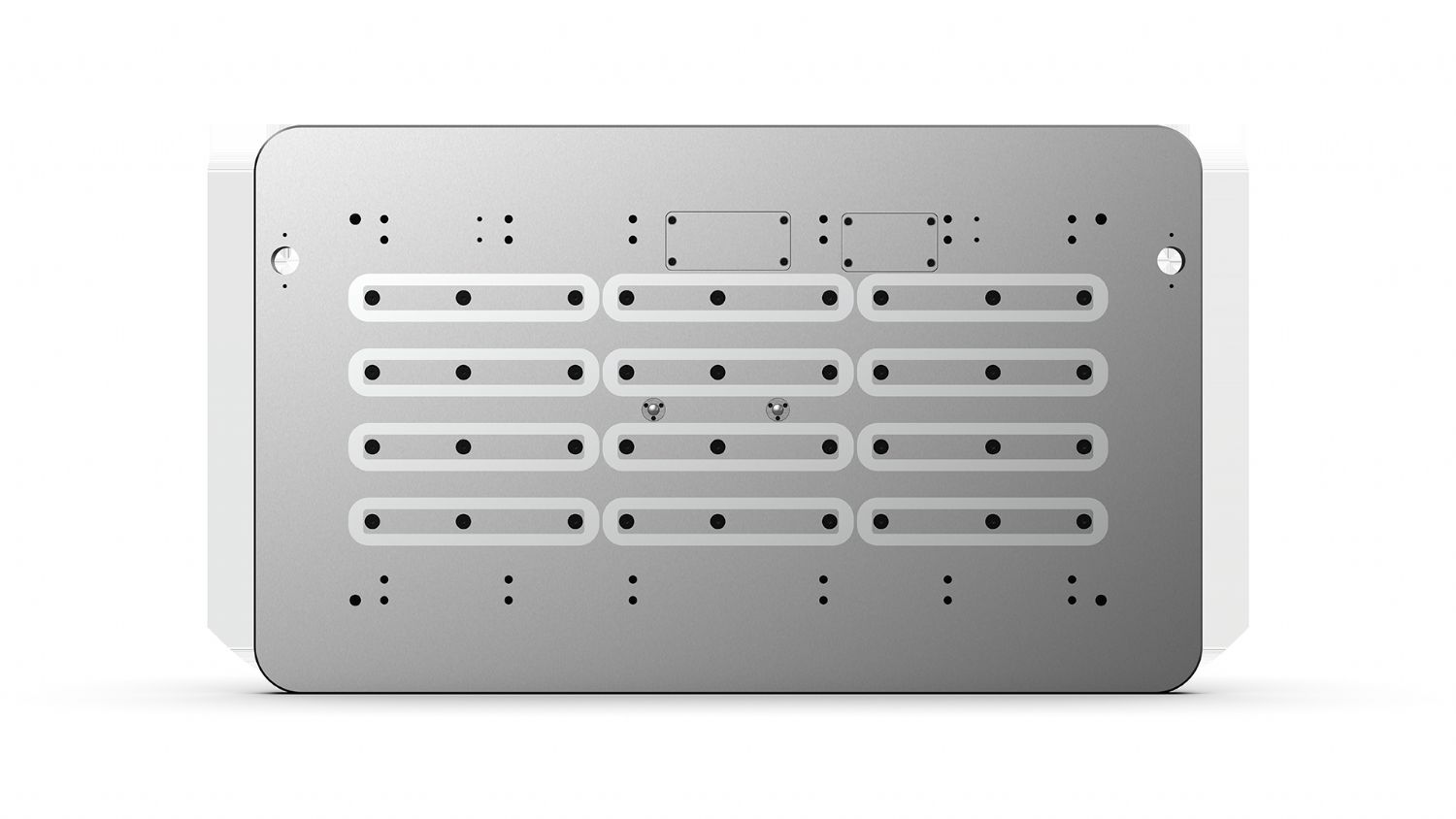

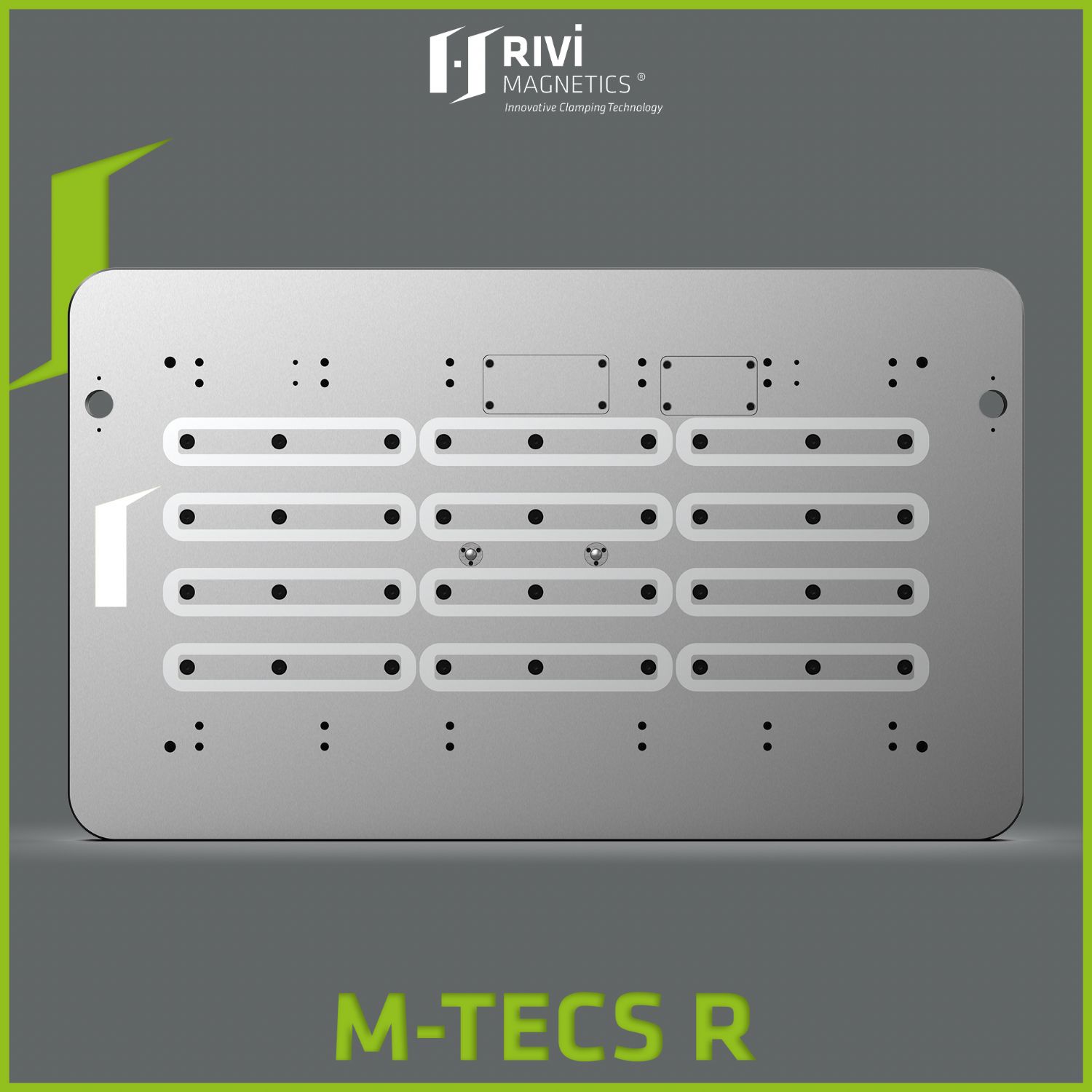

The system is available with three different magnetic pole technologies:
Square Pole
Long Pole
Combined Pole (Square + Long)
These configurations enable a wide application range, from small molds to very large and heavy tooling, while ensuring maximum utilization of the press platen surface.

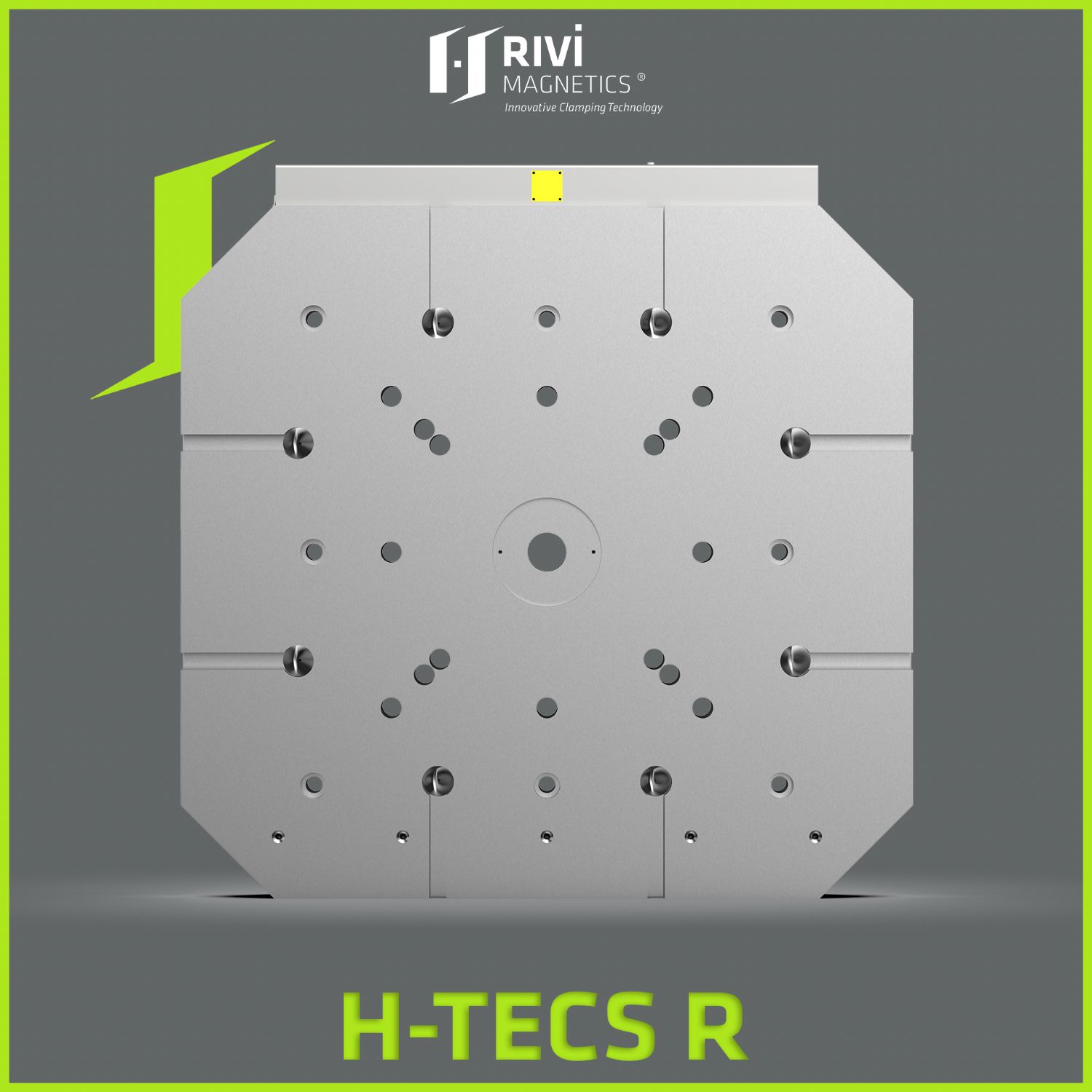

H-Tecs R heated platens can be used either in combination with magnetic platens or as standalone heating solutions. Heat distribution is engineered to be extremely uniform across the platen surface.
Technical Performance and Numerical Data
Operating temperature:
Up to 240 °C
Minimum magnetic platen thickness:
47 mm
Magnetic clamping force:
High and uniform, optimized for thermoset and rubber applications (depending on surface conditions)
Mold changeover time:
Reduced to minutes compared to mechanical clamping systems
Heated platen temperature tolerance (H-Tecs R):
±3 °C to ±5 °C
(measured at 50 mm from the platen edge)
Mold modification required:
None
Energy consumption:
Practically zero for magnetic systems (only during magnetization and demagnetization)
Production Advantages
The M-Tecs R / H-Tecs R systems offer significant operational and economic benefits for thermoset and rubber manufacturers:
Substantial reduction in mold changeover times
Increased press efficiency and hourly production output
Complete elimination of mechanical clamping components
Full utilization of the press platen surface
Improved operator safety by allowing molds to be preheated outside the press
Suitability for clean room and highly organized production environments
Enhanced operator ergonomics and workplace safety
Reduced mold deformation and lower scrap rates
Safety, Sensors, and Certifications
M-Tecs R and H-Tecs R systems are designed in full compliance with international safety standards:
Compliance with EN 201 and EN 289
Mold presence sensors
Limit switch systems
MDS electronic mold detachment sensor
Over-temperature protection (thermal safety sensors for temperatures above 240 °C)
CE marking and declaration of conformity
Complete technical documentation for all systems
Control Units and Intelligent Management
The system is available with three main control units, configurable according to press tonnage:
M1C Right
For small and medium-tonnage presses
Euromap 70 compliant
Support for 2 mold presence sensors
MDS mold detachment sensor
M2C Master
For medium and large-tonnage presses
PL-e safety level
Control of up to 4+4 magnetic platens
Advanced alarm management
M3C Mega
For very large-tonnage presses
Control of up to 8+8 magnetic platens
Advanced touchscreen user interface
Maximum safety and monitoring capability
All control units are designed in accordance with EN 13849-1 safety standards.
Remote Connectivity, Tele-Service, and Data Acquisition
Rivi Magnetics systems are fully compliant with Industry 4.0 requirements through advanced remote connectivity and tele-service infrastructure:
Real-time remote monitoring
Alarm history and system status analysis
Authorization-based access control
Process data collection and analysis
Early detection of maintenance needs and failure risks
This architecture reduces unplanned downtime while lowering maintenance costs.
Conclusion
Rivi Magnetics M-Tecs R and H-Tecs R Thermosetting - Rubber systems are advanced magnetic solutions that deliver fast mold changeovers, high-temperature stability, superior safety, and long-term production efficiency in thermoset and rubber press applications. By overcoming the limitations of mechanical clamping systems, this technology represents a strategic investment for facilities operating high-tonnage presses, long curing cycles, and heavy molds.
