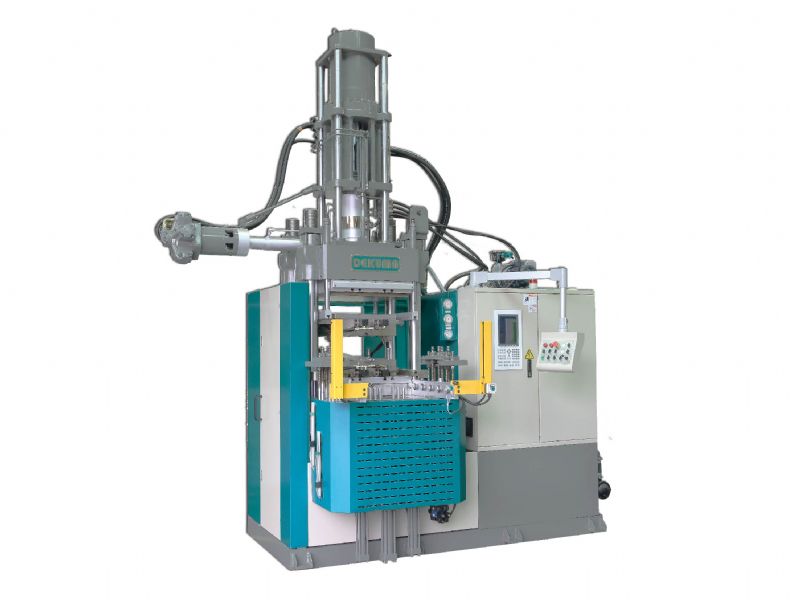

DEKUMA RV SERIES
RUBBER INJECTION MOLDING MACHINES

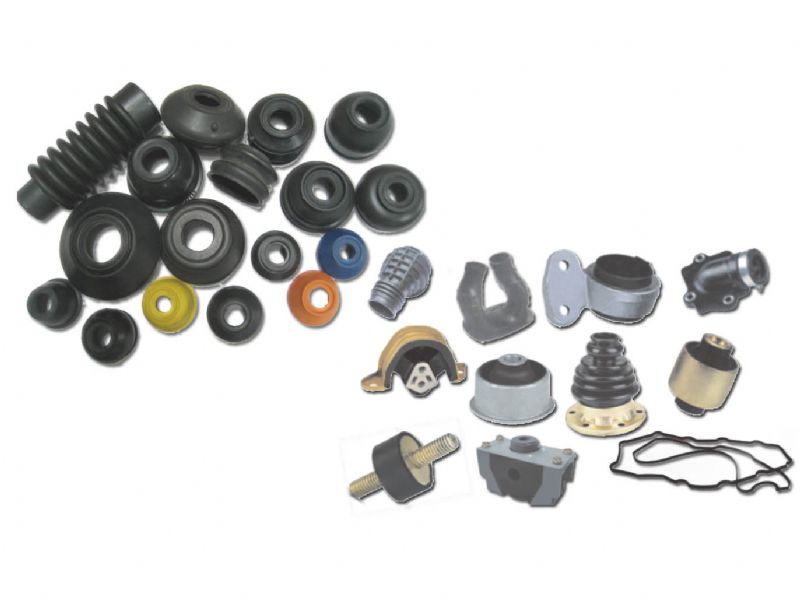

Dekuma RV Series rubber injection molding machines provide high-precision, high-tonnage, and long-life rubber injection solutions developed for automotive, energy, infrastructure, and general industrial applications. Combining German engineering expertise with advanced manufacturing capabilities, Dekuma has become a globally preferred brand with its RV series, particularly in the production of automotive rubber parts, sealing elements, vibration dampers, gaskets, insulators, and technical rubber components.
RV series machines ensure high quality and excellent repeatability in mass production through their vertical injection structure, precise plasticizing and injection control, highly rigid clamping units, and advanced automation integration.
GENERAL DESIGN STRUCTURE OF RV SERIES MACHINES
Dekuma RV series machines are designed according to the vertical clamping – vertical injection principle. This structure allows the rubber material to flow more homogeneously under gravity and significantly improves filling quality, especially in molds with complex geometries.
Key design features include:
• High-rigidity, stress-relieved steel machine frame
• Servo-controlled hydraulic system
• High-precision plasticizing unit
• Accurate clamping and platen parallelism control
• Modular mold clamping structure
• Open architecture suitable for automation and robot integration
Thanks to this design, RV series machines deliver stable performance even in long-cycle, high-pressure rubber processing applications.
RUBBER INJECTION TECHNOLOGY AND OPERATING PRINCIPLE
In RV series rubber injection molding machines, the rubber compound is first prepared in the plasticizing unit under controlled conditions. The screw and barrel design is optimized to prevent rubber scorching or premature vulcanization. The plasticized material is then injected into the mold under high pressure.
The process consists of the following stages:
• Controlled plasticization of rubber
• Stable flow with low shear stress
• High-pressure injection
• Precise mold clamping and pressure holding
• Vulcanization and part demolding
This system ensures high part quality, especially when processing rubber types such as NR, SBR, EPDM, NBR, HNBR, and similar compounds.
RV SERIES MODEL RANGE AND CLAMPING FORCE OPTIONS
The Dekuma RV series is available in a wide clamping force range to meet different production requirements.
Typical clamping force options include:
• 250 tons
• 300 tons
• 400 tons
• 500 tons
• 600 tons and higher, available as special configurations
This wide tonnage range allows the RV series to cover an extensive product spectrum, from small technical rubber components to large automotive parts.
TECHNICAL AND NUMERICAL SPECIFICATIONS
Typical technical parameters of Dekuma RV series machines are provided within the following ranges:
Clamping Force
• 2500 kN – 6000 kN
Injection Unit
• Injection volume: 200 – 2000 cm³
• Injection pressure: 1600 – 2000 bar
• Injection speed: adjustable according to rubber type
Screw Diameter
• 45 mm – 90 mm
Plasticizing Capacity
• 15 – 80 kg/hour, depending on rubber compound
Mold Opening Stroke
• 500 – 900 mm
Platen Dimensions
• 600 × 600 mm – 1000 × 1000 mm
Heating Zones
• Multi-zone barrel heating system
• PID-controlled temperature management
Electrical and Hydraulic System
• Servo motor-assisted hydraulic system
• Low energy consumption
• High repeatability accuracy
These parameters can be customized according to the product type and specific process requirements.
HYDRAULIC AND SERVO SYSTEM TECHNOLOGY
The servo hydraulic system used in RV series machines operates by consuming energy only when required. This provides several advantages:
• Significantly reduced energy consumption
• Stable hydraulic oil temperature
• Quieter machine operation
• Extended system service life
Servo control improves injection speed, pressure, and position accuracy, directly enhancing part quality.
AUTOMATION, ROBOTICS, AND INDUSTRY 4.0 COMPATIBILITY
Dekuma RV series machines are fully open to automation solutions.
Available integration options include:
• Part removal robots
• Insert loading systems
• Automatic feeding units
• Vision inspection systems
• Data acquisition and production monitoring software
The machine control system supports data communication and production reporting compatible with Industry 4.0 infrastructures.
APPLICATION AREAS
Dekuma RV series rubber injection molding machines are widely used in the following industries:
• Automotive industry
• Electrical and energy sector
• Railway and infrastructure
• Vibration and sealing solutions
• Industrial rubber component manufacturing
Especially in the automotive sector, the RV series offers significant advantages for the production of high-volume, tight-tolerance rubber parts.
ADVANTAGES OF THE DEKUMA RV SERIES
• High clamping force and rigid machine structure
• Precise injection and plasticizing control
• Low scrap rate
• High production repeatability
• Modular design suitable for automation
• Long machine service life
