MTF Steel Plate Conveyor – Steel Hinged Plate Conveyors
MTF Steel Plate Conveyors are steel hinged plate (hinge plate) conveyor systems specifically designed for heavy-duty and high-temperature production environments. With a modular structure, high temperature resistance, flexible configuration options, and an industrial durability-oriented design, they provide an effective conveying solution for metal processing, foundry operations, press parts, and plastic manufacturing processes.
Product Description and Key Features
MTF steel plate conveyors offer engineered solutions for reliable material handling under demanding production conditions.

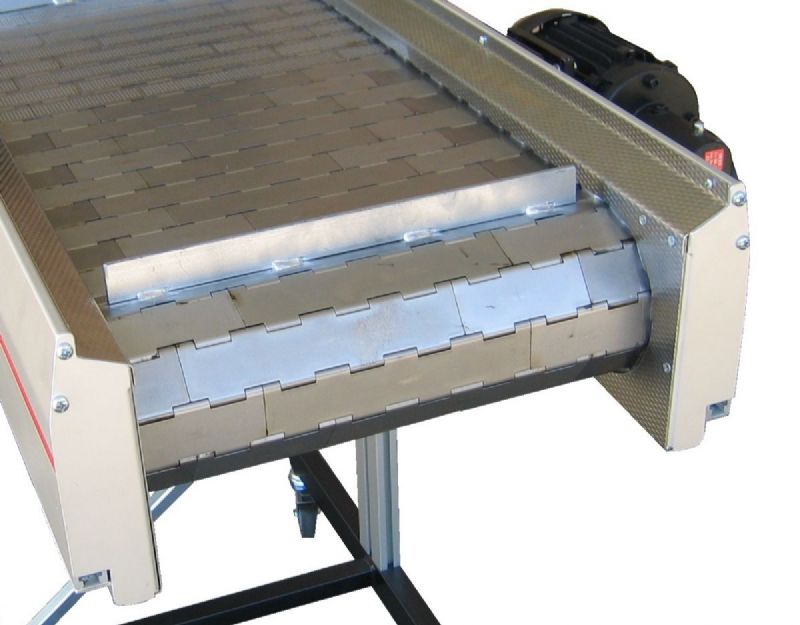

• Hinged steel plates combined with a robust aluminum carrier profile system provide mechanical stability and long service life.
• Steel or stainless-steel hinged belts are suitable for the safe transport of hot parts and metal chips.
• Chain guides and automatic spring tensioning mechanisms on the belt system ensure continuous operation with low maintenance requirements.
• Optimized sealing between side covers and cast hinged plate edges minimizes particle and material leakage.
Design Details and Technical Structure
Frame and Carrying System
• The modular aluminum profile frame features a ladder-type structure that provides high torsional rigidity.
• Mounting slots on the side and bottom surfaces of the aluminum profiles facilitate easy installation of auxiliary equipment.
• Hinged plate belts consist of steel or stainless-steel elements with a thickness of 1.5 mm.
• Belt elements and traction chains are standardized with a 38.1 mm pitch.
Surface Options
Hinged plate surfaces are available in the following options:
Smooth surface
Hard patterned (knurled)
Perforated
Perforated and patterned
Slotted / grooved design
Temperature and Operating Conditions
• Plate belts are designed for continuous operation at temperatures up to 300°C.
• Standard pallet support blocks offer temperature resistance up to 90°C, while special high-temperature plastic blocks can be used for elevated temperature applications.
Configuration Options
Thanks to its modular design, the MTF system can be adapted to a wide range of conveying applications. The main configuration types include:
-
Straight Conveyors
• Basic frame types are designed without a base frame and can be integrated directly into machine frames.
• Belt lengths can be customized from 500 mm up to 12,000 mm.
• Belt widths can be manufactured from 200 mm up to 1,000 mm.
-

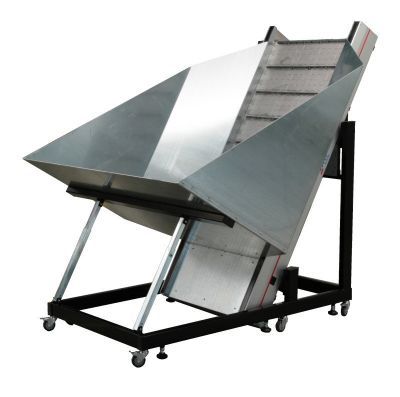

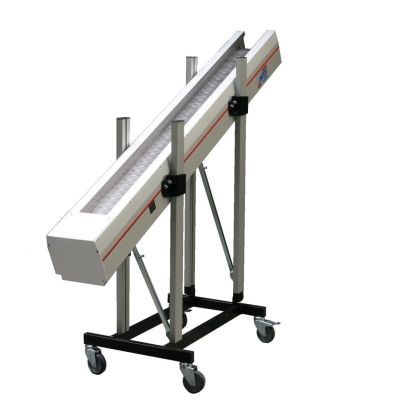

Inclined / Declined Conveyors
• Belt inclinations can be configured at standard angles of 30°, 45°, 60°, and 75°.
• Declined (↓) options are available for controlled downward discharge of materials.
-
Z-Shaped (ZVF) Layouts
• Compact Z-shaped configurations up to 2,000 mm in length and 500 mm in width.
• Provide high stability for lifting and repositioning applications.
-
Fixed Base Models (LD 120)
• Equipped with height-adjustable support legs and belt lengths up to 3,000 mm for heavy-duty conveying applications.
• Commonly used for part discharge from robot cells or as feeding conveyors in production lines.
Motor, Drive, and Control Features
• High-torque flange-mounted motors are standard.
• Conveying speed and system performance can be optimized according to the process through different motor power ratings, gear ratios, and control options.
• Standard speed range is adjustable between 2.4 m/min and 16.3 m/min.
• Drives can be equipped with frequency inverters, motor protection switches, or integrated into customer-specific control systems.
Performance Data
Belt Element Dimensions and Parameters
• Plate thickness: 1.5 mm
• Pitch value: 38.1 mm
• Belt width range: 200 mm – 1,000 mm
• Length range: 500 mm – 12,000 mm
• Belt inclinations: ±60°, with 30° / 45° / 60° / 75° options
• Operating temperature: maximum 300°C
• Conveying speed: 2.4 – 16.3 m/min
These technical parameters ensure stable and continuous conveying under heavy industrial conditions.
Application Areas
• Metal processing facilities
• Foundry and press part conveying
• Hot product and casting discharge lines
• Part discharge from robot cells
• Production line feeding systems
• Hot part conveying after plastic injection and extrusion
• Heavily contaminated production environments
MTF steel hinged plate conveyors stand out with their long service life and low maintenance requirements, especially in applications involving high temperatures, heavy parts, and continuous mass production.
Advantages – Technical and Operational
• High Mechanical Strength: Heavy-duty design with torsion-resistant aluminum frame.
• Modular and Flexible: Easy adaptation to production processes with various base frame and inclination configurations.
• Easy Maintenance: Low maintenance thanks to removable belt supports without disassembly and automatic spring tensioning.
• High Thermal Performance: Hinged plate belt solution resistant to temperatures up to 300°C.
• Optional Belt Surfaces: Multiple surface options to match specific material and application requirements.
