AOKI Injection Stretch Blow Molding Technology
High Speed, High Precision, and Low Energy Consumption in a Single-Stage Process
AOKI injection stretch blow molding (ISBM) technology offers an advanced engineering approach aimed at achieving some of the highest production speeds worldwide through its single-stage, three-station configuration in plastic packaging manufacturing. While simplifying the production process, this technology simultaneously maximizes product quality, process stability, and energy efficiency.
AOKI ISBM systems integrate the injection, stretch-blow, and product ejection steps into a single machine and a single continuous process chain. This structure eliminates intermediate handling, reheating, and additional process requirements, thereby shortening cycle times and minimizing energy losses.

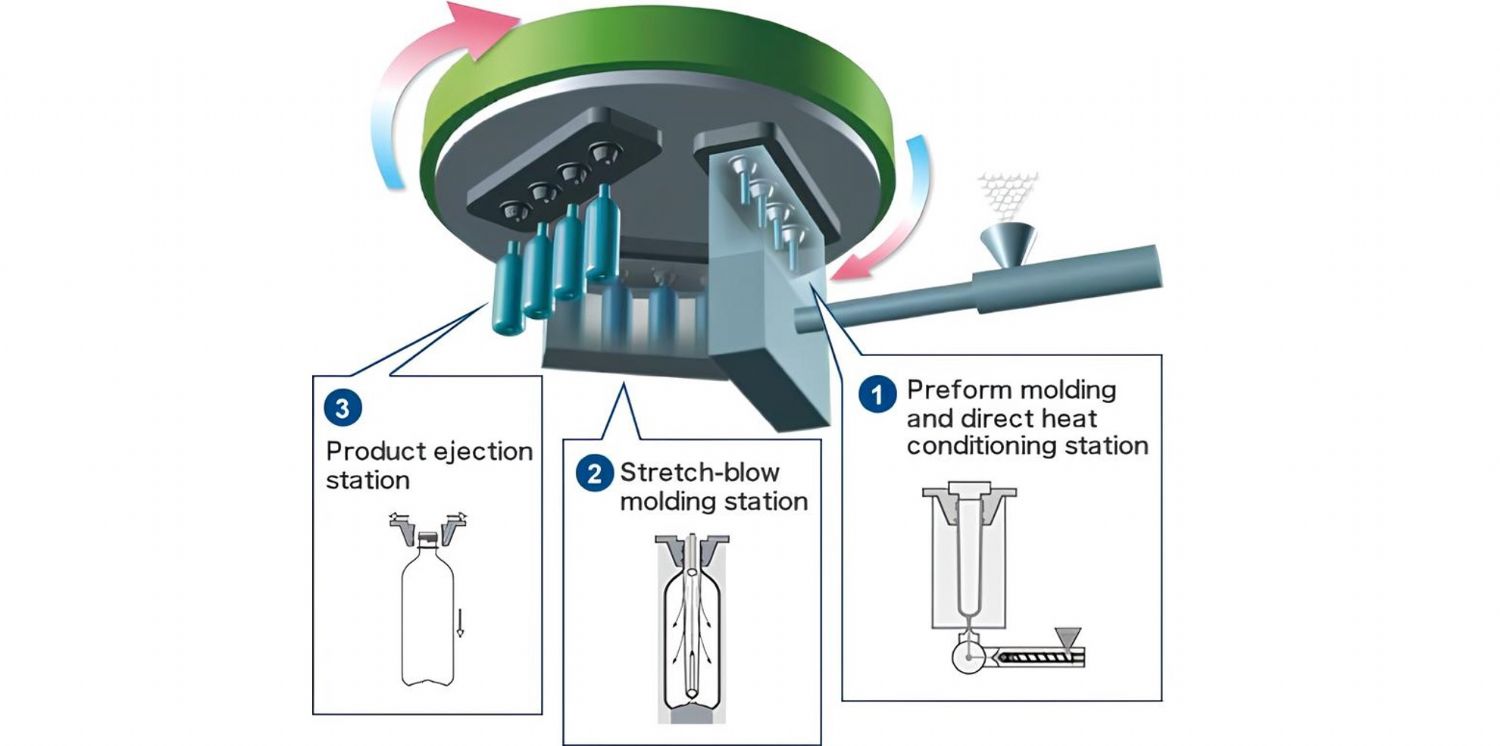

At the heart of the single-stage, three-station system is a highly simplified and mechanically optimized rotary table mechanism developed by AOKI. This mechanism ensures that all steps-from preform injection molding to final product ejection-are carried out in a fully synchronized and high-speed sequence. Thanks to its mechanical simplicity, the system maintains stable operation even at very high cycle speeds.
The first station, the injection station, is where the preform is produced with high precision in accordance with the final container geometry. At this stage, the material is molded under optimal temperature and pressure conditions. In AOKI systems, the injection unit is designed to ensure minimal material loss and high repeatability. As a result, preform weight tolerances are kept within narrow limits and quality variations between products are minimized.
The second station, the stretch-blow station, is the critical phase in which the preform is simultaneously stretched and blown into its final container shape. AOKI's technological differentiation becomes evident through the high-precision temperature and pressure control applied at this stage. The preform is maintained within an ideal temperature range, and controlled axial stretching ensures uniform molecular orientation of the material. This significantly enhances the mechanical strength of the container while ensuring a balanced wall thickness distribution.
The third station, the product ejection station, is where the finished container is removed from the machine at high speed and with maximum reliability. In this station, products are ejected without deformation and without compromising surface quality. Fast and stable product discharge directly contributes to shorter overall cycle times.
In AOKI ISBM systems, cycle time is one of the most critical indicators of production efficiency. Thanks to the single-stage design, there is no need to reheat the preform. Compared to conventional two-stage systems, this results in significantly shorter cycle times and lower energy consumption. Energy used in the production line is directed exclusively toward shaping the product itself.
Direct Heatcon (direct heating) technology is one of AOKI's key competitive advantages in high-speed production. With this technology, the preform is maintained at the ideal temperature within the process, without the need for additional heating equipment. This reduces system complexity while eliminating energy losses associated with external heating.
The Direct Heatcon system provides significant advantages, particularly in high-volume production facilities. It requires fewer components, reduces maintenance needs, and lowers overall investment costs. At the same time, it enhances process stability, helping to maintain consistent product quality over extended production periods.
Another major advantage of AOKI technology is its high-speed mold opening and closing capability. By optimizing mold movements, cycle times are reduced while mechanical stress on the system is minimized. This extends mold service life and increases the intervals between maintenance operations.
From an energy efficiency perspective, AOKI ISBM machines are designed to significantly reduce energy consumption per produced unit. Energy used in production is not wasted on unnecessary heating, transport, or waiting steps, but is instead focused directly on the shaping of the product. This approach lowers operating costs while also reducing the carbon footprint of the manufacturing process.
In high-speed production systems, quality degradation is one of the greatest risks. AOKI eliminates this risk by placing process control at the core of its technology. Temperature, pressure, and time parameters are precisely controlled across all stations. As a result, even at high production speeds, product dimensions, weight tolerances, and surface quality remain consistently stable.
AOKI ISBM technology offers a significant competitive advantage, particularly for manufacturers engaged in high-volume, standardized packaging production. Shorter cycle times, higher hourly output, and lower energy consumption substantially reduce return-on-investment periods.
In conclusion, AOKI's single-stage, three-station injection stretch blow molding technology combines mechanical simplicity, high speed, high precision, and low energy consumption on a single platform. This approach provides plastic packaging manufacturers with a technically robust, economically efficient, and long-term sustainable solution.
