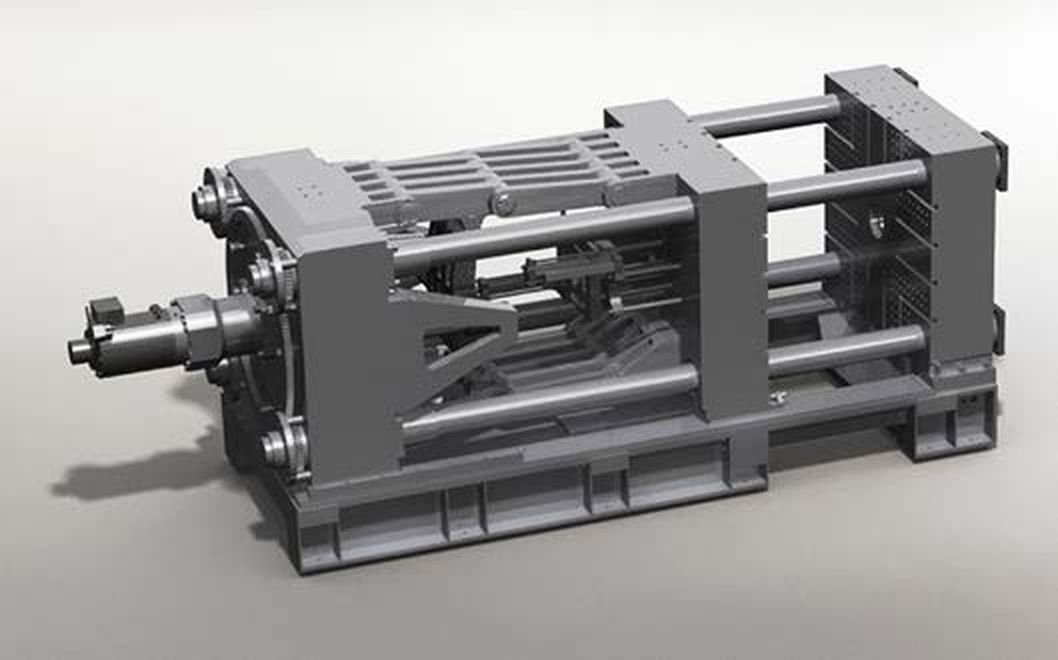

Advantages of Toggle Systems in Injection Molding Machines
Toggle clamping systems represent one of the most efficient and widely used mechanical solutions in modern injection molding technology. Designed to convert mechanical motion into high clamping force with maximum efficiency, toggle mechanisms deliver fast cycle times, energy savings and high repeatability.
Plastic Metal injection platforms integrate advanced multi-point toggle systems to provide stable mold clamping, reduced energy consumption and long machine lifetime, especially in high-speed and precision production environments.
High Mechanical Efficiency and Force Amplification
Toggle mechanisms operate through a multi-link structure that amplifies mechanical motion into high clamping force. Compared to direct hydraulic systems, toggle machines:
require significantly lower energy to reach full clamping force
deliver mechanical force multiplication through linkage geometry
reduce continuous hydraulic pressure demand
In modern designs, clamping force can reach hundreds to thousands of tons while maintaining low energy consumption during mold closed phases.
Typical performance advantages include:
high force generation with minimal motor load
stable clamping at full tonnage
reduced hydraulic load and wear
Faster Cycle Times and Higher Productivity
Toggle systems enable rapid mold opening and closing thanks to mechanical acceleration characteristics:
high-speed mold movement during opening/closing phases
short dry-cycle times
optimized production throughput
In high-volume manufacturing environments, cycle time reductions of 10-30% compared to traditional hydraulic clamping systems can be achieved depending on machine configuration and application.
This makes toggle machines ideal for:
thin-wall packaging
consumer goods
technical precision parts
high-cavity molds
Energy Efficiency and Lower Operating Costs
Toggle clamping systems significantly reduce energy consumption:
clamping force is mechanically locked without continuous hydraulic pressure
energy demand is minimized during mold closed phase
servo motors operate only during movement
Energy savings of up to 20-50% compared to full hydraulic clamping systems are commonly achieved in modern servo-toggle platforms.
Additional cost benefits:
lower cooling requirements
reduced hydraulic oil consumption
lower heat generation
High Precision and Repeatability
Mechanical toggle structures provide consistent positioning and stable mold closing:
repeatable mold alignment
stable force distribution across platen surface
minimal variation between cycles
This results in:
consistent part quality
high dimensional accuracy
stable injection conditions
Precision toggle systems support production environments where repeatability is critical, such as:
medical parts
electronics
optical components
technical engineering plastics
Compact Machine Footprint
Toggle machines typically require less floor space than hydraulic clamping systems of comparable tonnage:
shorter machine length
optimized footprint
higher rigidity-to-size ratio
This allows manufacturers to increase production density within limited factory space.
Extended Machine Lifetime and Lower Maintenance
Because the clamping force is mechanically locked:
reduced hydraulic stress
lower component wear
longer mechanical lifespan
Maintenance intervals are extended and operational downtime is reduced.
Typical lifecycle advantages:
long service life of mechanical components
lower maintenance cost over machine lifetime
stable performance across years of operation
Process Stability and Mold Protection
Toggle mechanisms ensure:
controlled clamping force buildup
precise mold closing movement
stable injection support
This protects molds from excessive pressure spikes and improves tool life, particularly in multi-cavity and high-precision mold applications.
Automation and Smart Factory Compatibility
Modern toggle machines are designed for integration into automated production systems:
robot-ready interfaces
data monitoring and process analytics
Industry 4.0 communication compatibility
remote diagnostics and service connectivity
This enables high-speed automated molding cells operating continuously.
Typical Application Areas for Toggle Systems
thin-wall packaging
consumer goods manufacturing
medical disposables
electronic housings
technical precision components
high-cavity injection molds
Key Advantages of Toggle Clamping Technology
high mechanical efficiency and force amplification
10-30% faster cycle times in high-speed applications
20-50% lower energy consumption vs. hydraulic clamping
high repeatability and mold alignment accuracy
compact footprint and optimized factory space usage
reduced hydraulic load and heat generation
long machine lifetime and lower maintenance costs
automation-ready architecture
Toggle technology remains one of the most reliable and efficient clamping solutions in injection molding. By combining mechanical precision, energy efficiency and fast cycle performance, toggle systems enable manufacturers to achieve high productivity, consistent part quality and optimized operating costs.
