Magnetostrictive Ultrasonic Technology Definition
Magnetostrictive ultrasonic technology is a method that converts electrical energy into mechanical ultrasonic vibrations by utilizing the properties of magnetostrictive materials. Magnetostrictive materials change their dimensions when exposed to a magnetic field, generating mechanical vibrations. These vibrations create cavitation activity within a liquid, enabling effective ultrasonic cleaning. FISA is one of the few manufacturers that designs ultrasonic transducers based on this technology, achieving outstanding performance in heavy-duty applications that require deep penetration and high cleaning power.
Basic Operating Principle of Magnetostrictive Ultrasonic Systems
Magnetostrictive Material Behavior
Magnetostrictive materials tend to elongate or contract under changing electromagnetic fields. When high-frequency magnetic current is applied, this behavior is converted into mechanical vibrations. These vibrations:
Create resonance-frequency oscillations within an ultrasonic transducer,
Cause alternating high and low pressure zones in the liquid medium,
Generate cavitation bubbles whose implosion effectively removes contaminants from part surfaces.
FISA's magnetostrictive transducers combine this principle with high mechanical robustness and deep penetration capability.
Ultrasonic Frequency Range and Performance
FISA manufactures its own ultrasonic generators and transducers, including magnetostrictive systems. In these systems, ultrasonic frequencies are typically generated in the range of 20 kHz to 120 kHz, allowing optimization according to material type and contamination characteristics. Lower frequencies generally provide more aggressive cavitation and faster cleaning action, while higher frequencies enable more delicate and precise cleaning.
Structural Characteristics of Magnetostrictive Ultrasonic Systems

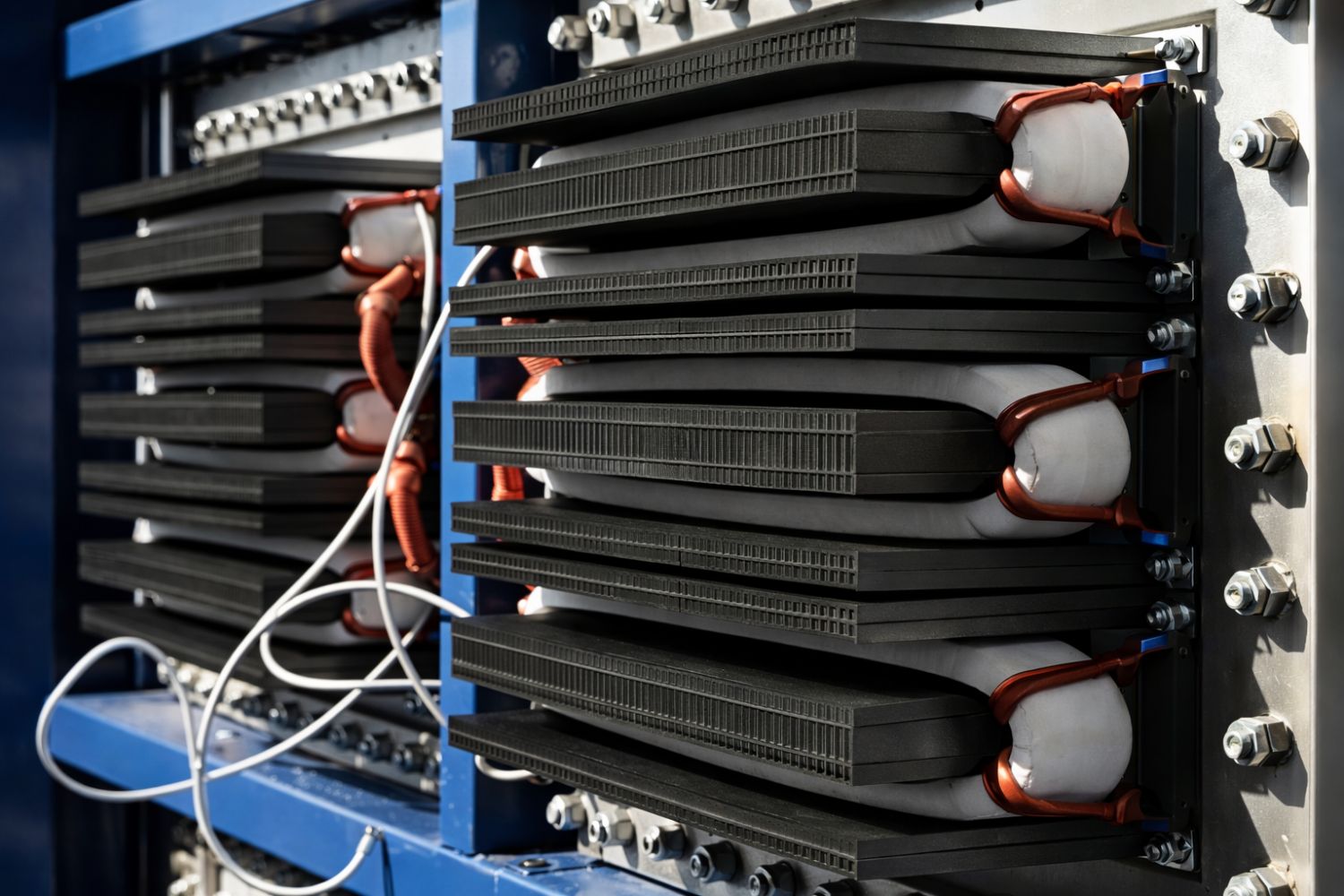

Transducer Construction
Magnetostrictive core material: magnetic materials such as pure nickel or nickel-based alloys,
Magnetic coils: generate high-speed magnetic fields around the transducer,
Fluid contact surface: resonator plates immersed in the liquid transmit vibrations efficiently.
This structure is optimized for durability and long service life, delivering stable performance even in heavy industrial and mass-production environments.
Key Differences Between Magnetostrictive and Piezoelectric Technologies
According to FISA's technological approach, three main ultrasonic activation types are used: magnetostrictive, piezoelectric, and multi-frequency piezo systems. Magnetostrictive technology is preferred for applications requiring deep penetration and high durability, especially for thick parts and heavy contamination. Piezoelectric systems are typically used in applications requiring lighter operation and rapid frequency changes.
Advantages of Magnetostrictive Ultrasonic Technology in Industrial Applications
High Energy Output and Deep Cavitation
Magnetostrictive transducers deliver high mechanical energy output, which is critical for deep penetration and effective removal of heavy contamination. As a result, highly efficient cleaning is achieved on surfaces such as:
Molds,
Extrusion and casting tools,
Heavy mechanical components.
Effectiveness on Fine and Complex Geometries
High-energy penetration ensures effective cleaning even in micro-channels, deep grooves, and complex surface details. This capability significantly improves efficiency, particularly in plastic and rubber mold maintenance.
High Durability and Stable Operation
Magnetostrictive transducers can operate reliably for long periods even under mechanical stress and high-temperature environments. This makes them especially valuable for continuous production lines.
Technical Parameters of Magnetostrictive Ultrasonic Systems
Parameter - Typical Range / Value
Frequency - 20 kHz to 120 kHz
Energy Output - High mechanical input for strong cavitation
Transducer Type - Magnetostrictive (such as pure nickel honeycomb structures)
Application Areas - Mold cleaning, casting tools, optical precision cleaning
System Performance and Process Flow
Typical cleaning processes in magnetostrictive ultrasonic systems include the following steps:
Immersion and Ultrasonic Activation: Parts are immersed in the cleaning tank and magnetostrictive vibrations are activated.
Cavitation Formation: Millions of microscopic bubbles are generated in the liquid.
Cavitation Implosion: Bubble collapse removes contaminants from the surface.
Rinsing and Drying: Cleaned parts are freed from residual detergents and solutions.
This process maximizes performance through the combined effects of mechanical and chemical cleaning.
Application Examples
Magnetostrictive ultrasonic systems deliver effective results in the following industrial sectors:
Aerospace and Aviation: Deep cleaning of precision metal parts and engine components.
Medical Devices: Final cleaning and surface preparation prior to sterile production.
Optics and Precision Mechanics: Removal of contaminants from glass and micro-components.
Plastic and Rubber Mold Maintenance: Elimination of residues and deposits from mold cavities.
Strategic Value of Magnetostrictive Ultrasonic Technology for FISA
FISA designs and implements magnetostrictive ultrasonic systems within its own manufacturing facilities, ensuring full control over technology and quality. This approach strengthens the brand's global market position by offering high energy efficiency, durability, continuous operation capability, and superior performance against heavy industrial contamination.
Conclusion: The Role of Magnetostrictive Ultrasonic Technology in Modern Manufacturing
FISA's magnetostrictive ultrasonic technology provides high penetration, stable operation, and long service life in industrial cleaning and surface maintenance applications. It stands out particularly in processes requiring the removal of heavy contamination, the protection of complex geometries, and the preservation of sensitive surfaces. For modern manufacturing environments seeking reduced downtime, higher quality, and repeatable results, magnetostrictive ultrasonic systems represent a powerful and reliable solution.
