CadGrip 2.2 End of Arm Toll (EOAT) Configurator
The operation of this software is simple and intuitive.
Previous knowledge of operation, for example of a CAD system, is not necessary. CAD - Grip functions autonomously without the combined use of commercially available CAD software. The user can configure his gripper offline. "This eliminates the need to install software, which always leads to a high level of coordination with the IT department, especially in large companies. CAD Grip is delivered on a USB stick.
The application is started via an automatically executing file. Installation on the company computer is therefore not necessary.
System requirements: min. CPU: Intel Core i5/i7/i9, AMD Ryzen 5/7/9 from 2Ghz, Graphics: Dedicated graphics card (Geforce/Radeon), Memory: 4GB RAM, Windows 10

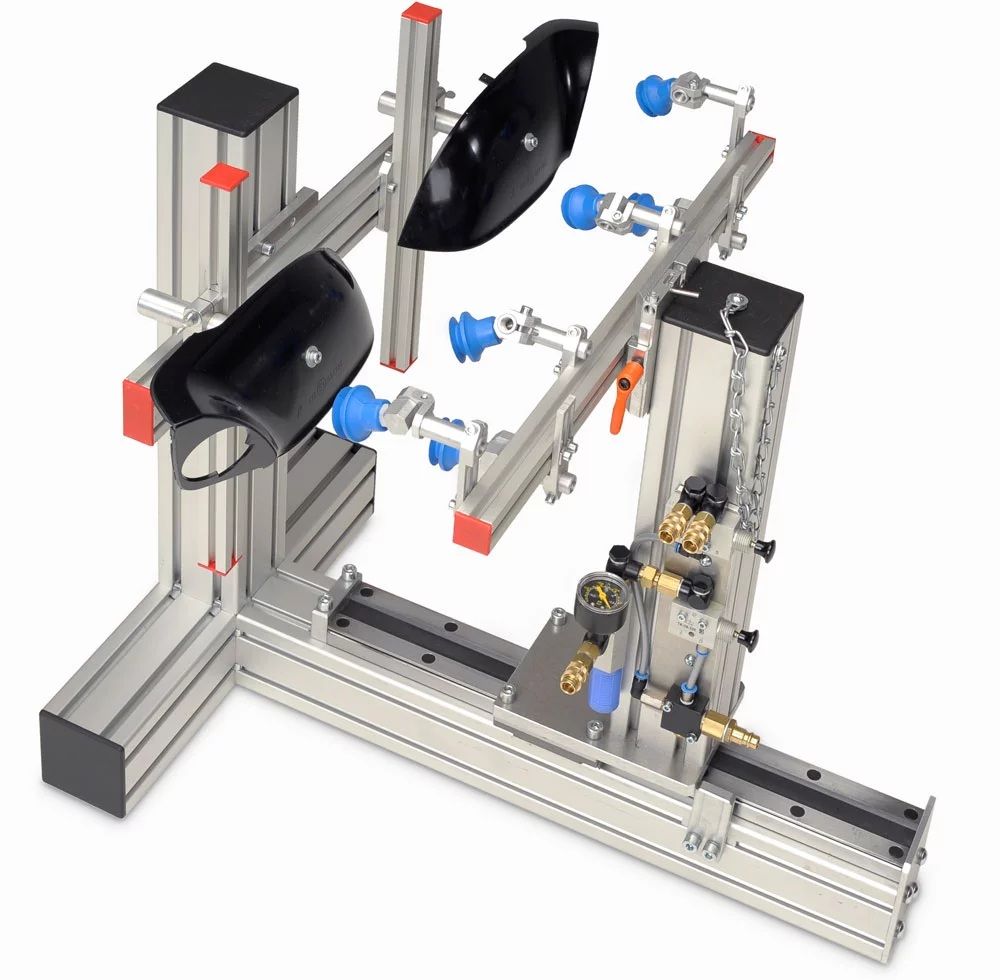

End of Arm Tool Construction - Montageboy
Simple rational gripper building with function control of the gripper.
EOAT quick-change system GWS-1 or GWS-2
Clamping device for the molded parts
Vacuum generation through integrated Venturi nozzle
Vacuum control through pressure gauge
Functional control of the active elements (such as fingers, pliers, etc.) via integrated compressed air valve
Centering aid - center of gripper = center of workpiece

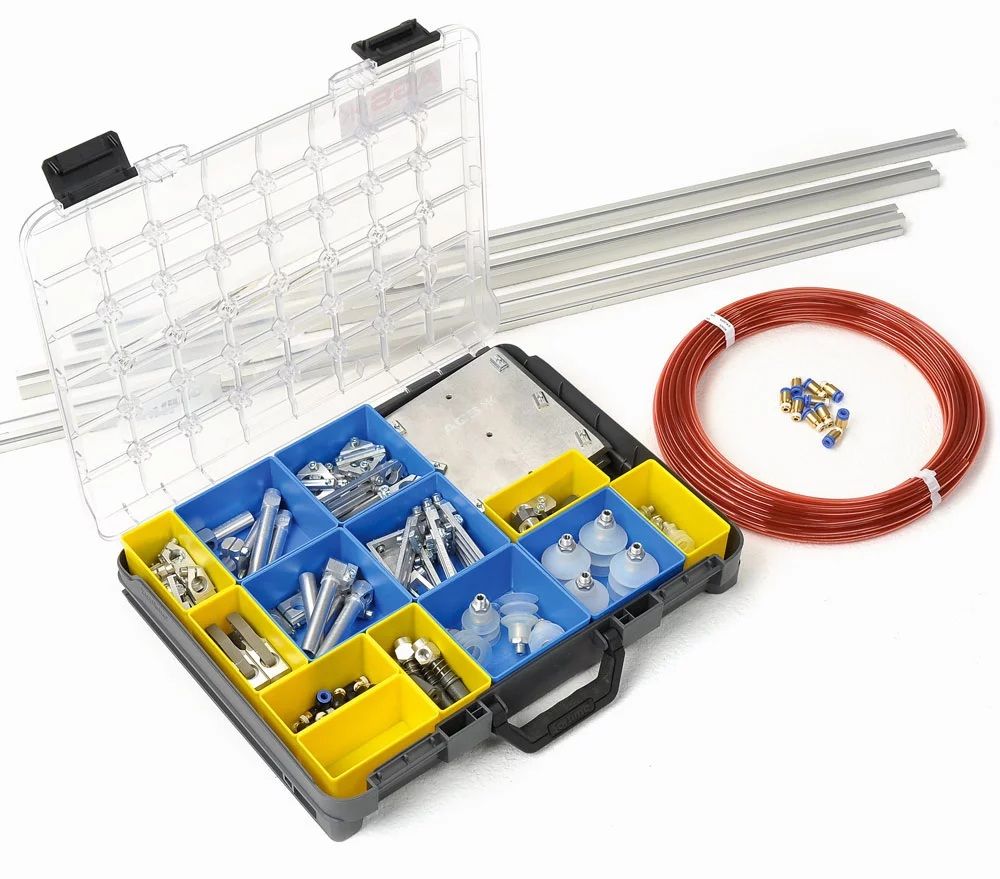

EOAT Construction - starter set
EOAT Construction conversion sets PreciGrip System
For customers who already use gripper arms, suction pads, grippers, etc. from the competition. Contents: Profiles, profile accessories, profile connectors, clamps.
EOAT Construction Starter Set - PreciGrip System
For customers who want to start completely new with a EOAT System or with PreciGrip. Contents: EOAT Base Plates, PreciGrip profiles, profile connectors, clamping pieces, gripper arms, suction pads, grippers, pneumatic fittings, air hoses, etc.
EOAT Construction Starter Set - Standard System
For customers who do not yet have any system experience and are looking for the right start in EOAT Construction. Contents: EOAT Base plates, slot nut profiles, profile connectors, clamping pieces, gripper arms, suction pads, grippers, pneumatic fittings, air hoses, etc.
